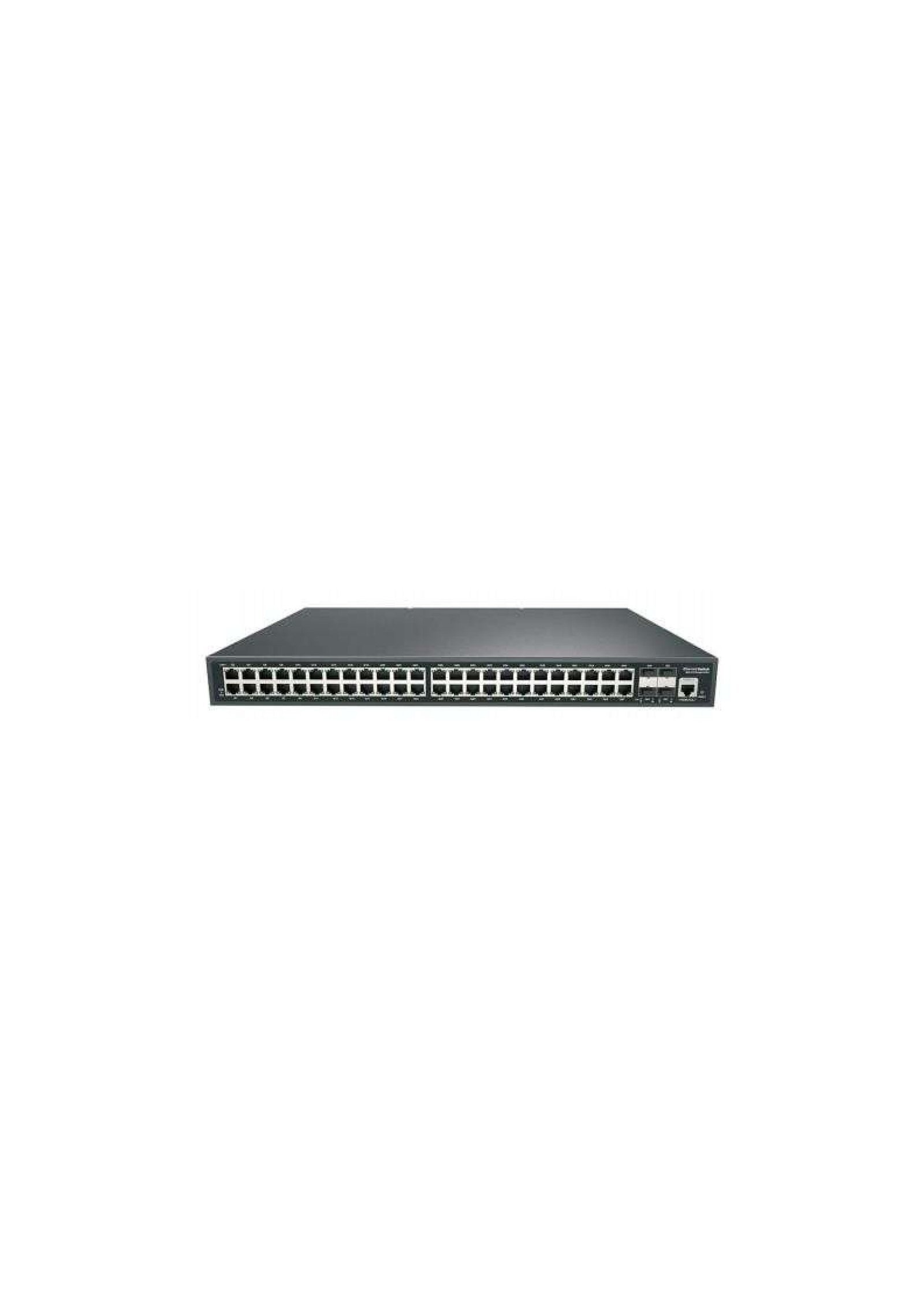

| Model: BLY-M0448GF |
| Category |
Parameter |
Specification |
| Port characteristics |
Etherner Interface |
48×10/100/1000 Base-TX RJ45 |
| Optical Interface |
4×1000 Base-FX(SFP) optical |
| Control Interface |
1xConsole(With RJ45) Serial port console |
| Optical port expansion |
Support Turbo overclocking 2.5G optical module expansion and ring network grouping |
| Product Features |
Backboard bandwidth |
104 Gbps |
| MAC Address |
24K |
| Jumbo Frames |
9.6K |
| Buffer Memory |
24M |
| Packet Forwarding Rate |
77.38 Mpps |
| POE optional |
Forwarding Rate |
Storage and Forwarding (Full Line Speed) |
| PoE Standard |
/ |
| PoE Interface |
/ |
| PoE Power |
/ |
| Housing |
Dimensions |
440x290x44.5mm |
| Weight |
4.5Kg |
| Installation |
Desktop wall-mounted 1U/19 inch cabinet |
| Power Supply |
Total Power |
60W |
| Input Voltage |
AC100-240V |
| Power Consumption |
<55W |
| Affiliated Power |
Built-in switching power AC:100x240V 50-60Hz 1.0A |
| Work environment |
Working Temperature/Humidity |
-20x+60x;5%x90%Rh non-condensing |
| Storage Temperature/Humidity |
-40x+80x;5%x95%Rh non-condensing |
| Lightning Protection |
4 KV 8/20 us |
| Protection Level |
IP 30 |
| Network management features |
VLAN |
Support Access, Trunk, Hybrid, QinQ configuration/based on port VLAN(4K) |
| Port Aggregation |
Support LACP/static aggregation |
| Multicast |
Support IGMP/MLD Snooping v1/v2 |
| Mirror |
Supports bidirectional traffic mirroring for basic ports |
| QoS |
802.1p/DSCP priority, (SP, WRR, SP+WRR) 8 output queues |
| Security Features |
802.1X authentication, MAC number limit/filtering, port isolation, IP source address protection, ARP intrusion detection, anti DoS attack |
| ACL |
Define ACL based on source MAC address, IP, TCP/UDP port, TCP/UDP port range, VLAN, etc. |
| DHCP |
Support DHCP Serve/Client/Relay/Snooping |
| Management Style |
Web management |
